Stage 1:
Prepare wall for body module by creating a 300mm x 300mm aperture.
Stage 2:
Insert and secure body module using suitable fixings to the front face (room side) and seal any gaps on the
rear of the module (projector side) using acoustic sealant.
Stage 3:
Insert glass module (with slotted silica gel aperture at the bottom).
Stage 4:
Secure the glass module in place by securing the front bezel using the 4x corner fixings.
Overall dimensions:
348mm (W) x 348mm (H) x 118mm (D)
Cutout size:
300mm x 300mm
Optical area:
244mm x 244mm
Glass type:
Dual 6mm Schott Conturan AR (modules are oriented with a 5 degree vertical tilt each, totaling 10 degrees between panes, closest at the
top)
Schott Conturan AR (6 mm) Specifications:
- Visible Light Transmittance: > 98%
- Reflection: < 1% per surface (< 2% total)
- Chemical Toughening: Compressive stress >= 350 MPa, Depth of layer >= 9 um -
Impact Resistance: IK08 (5 J steel ball drop - 1063 g
from 50 cm)
- Scratch Resistance: 10H pencil hardness
- Surface: Sol-gel applied AR-coating, compatible with chemical toughening

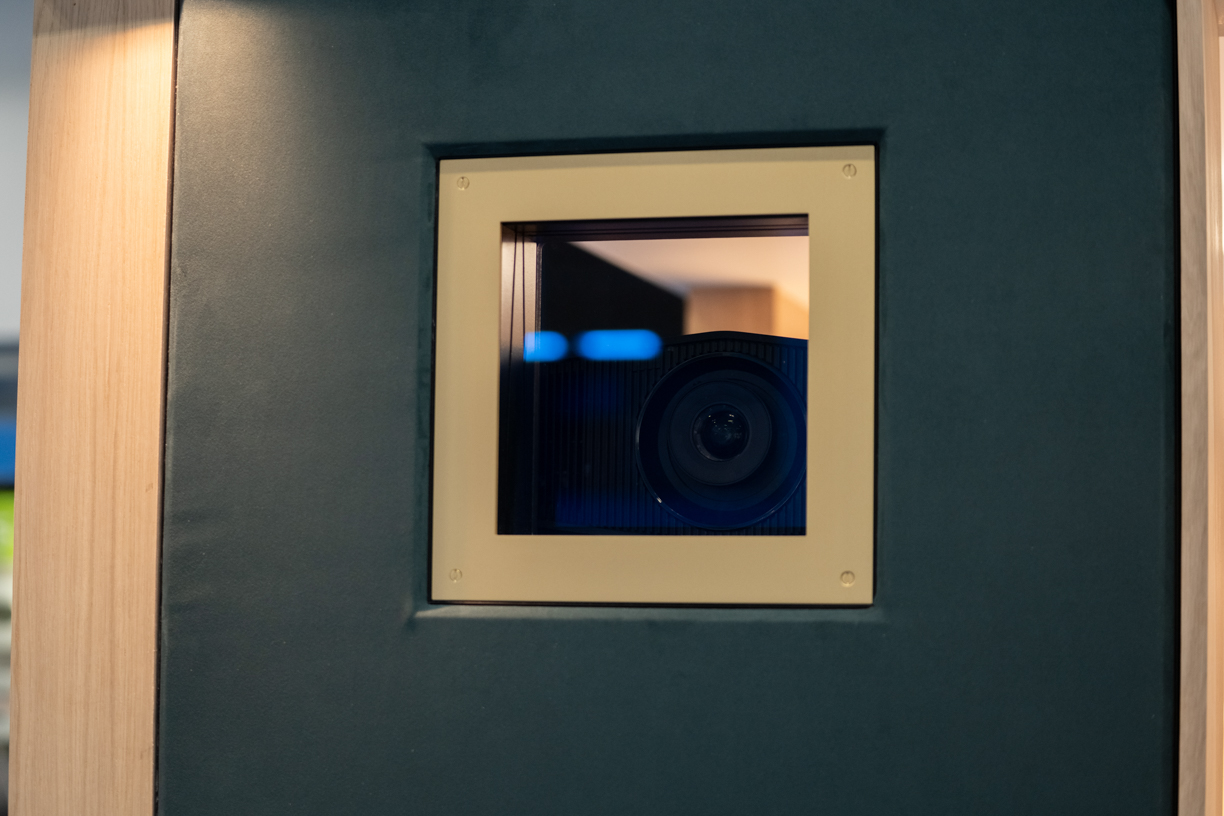

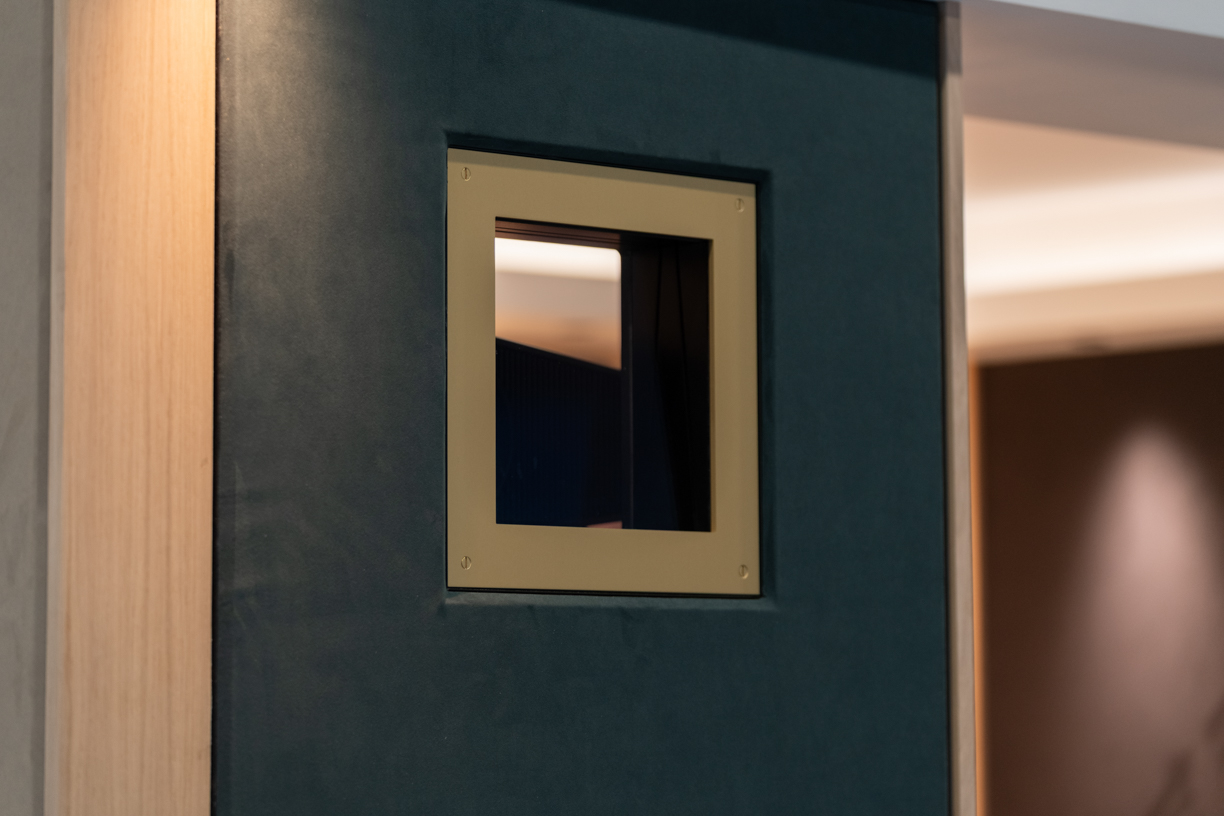

Front bezel:
6mm Aluminium Finish Options:
- Black Powdercoat
- Brush Anodised Gold
- Brushed Anodised Dark Bronze - Brushed Anodised Light Bronze
